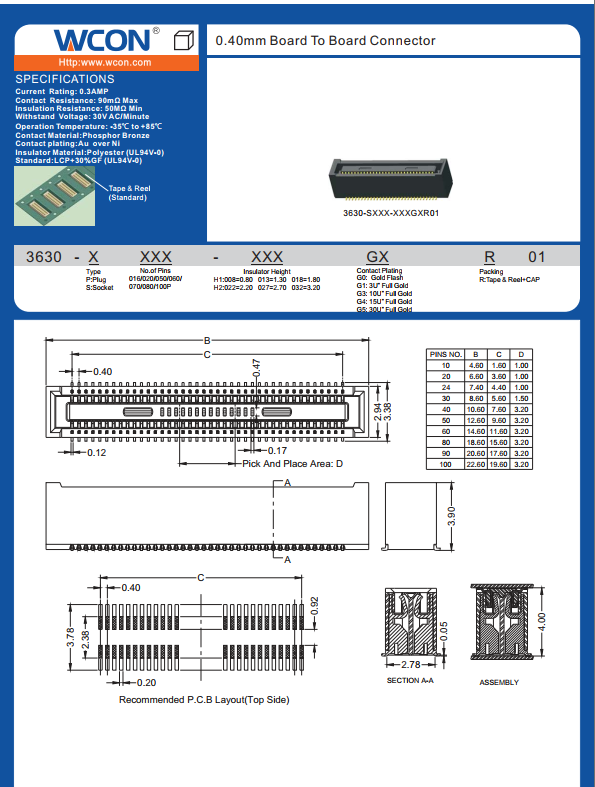

0.4mm, BTB Connector, Black, Phosphor Bronze, Plug/Socket

Brand Name : WCON

Model Number : 3630-X XXX-XXX GX R01

Certification : SGS/ROHS/UL/CUL

Place of Origin : Dongguan Town, Humen City, Guangdong

MOQ : 1000pcs

Price : Negotiable. It depends on the customers' requests.

Payment Terms : T/T

Supply Ability : 800000pcs

Delivery Time : 15~25Days

Packaging Details : Tape

Metal Material : Phosphor Bronze

Plastic Material : Polyester

NO of Pins : 10/12/20/24/30/34/40/44/50/60/70/80/90/100

Pitch : 0.4 mm

Contact Plating : AU Over NI

Packing Ways : Tape&Reel+Cap

Contact Now

0.4mm, BTB Connector, Black, Phosphor Bronze, Plug/Socket







Products Issues Products Descriptions
Products Characteristics Board-to-board connectors can be constructed for easy machine circuit design. By setting the insulating wall on the bottom side of the connector, PCB board wiring and metal terminals can be wired on the bottom side of the connector without contact, which is beneficial for the miniaturization of PCB boards; the board-to-board contact structure has superb environmental resistance and is not only flexible, but also uses a strong connection with high contact reliability. In order to improve the combination force of the socket and plug, a simple locking mechanism is adopted in the fixed metal part and the contact part, which improves the combination force and makes the locking more realistic.
Products Specifications Current Rating 0.3AMP
Contact Resistance 90 Milliohm Max
Insulation Resistance 50 Milliohm Min
Withstand Voltage 30V AC/Minute
Operation Temperature -35℃ to +85 ℃
Contact Material Phosphor Bronze
Contact Plating AU Over Ni
Insulator Material Polyester
Standard LCP+30%GF
Products Applications Mainly used in electric power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries. Board-to-board connectors are currently the strongest transmission capacity of all connector product types, board-to-board connectors exist not only for the convenience of disassembly, but also to provide current and signal carrier for the product.
