PA9T 0.5A 50V Female Board To Board Connector For Office Equipment

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

PA9T 0.5A 50V Female Board To Board Connector For Office Equipment

Brand Name : WCON

Model Number : 3652-SXXX-034XXR03

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000PCS

Delivery Time : 15~25Day

Packaging Details : Reel

Product use : office equipment

Type : Right Angle

Product name : Connector Board to Board

Texture of material : PA9T

Packing : Reel

Pitch : 1.25mm

Contact Now

1.25mm Female Board to Board Connector Single Row Right Angle





applications: power systems, communications networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.





SPECIFCATIONS (Female)
Current Rating : 0.5A AMP
Voltage Rating : 50V AC
Contact Resistance : 20mΩ Max
Withstand Voltage : 500V AC/Minute
Insulation Resistance : 500 MΩ Min
Operation Temperature : -40℃ to +105℃
MATERIAL/FINISH
Housing Material : PA9T(UL94V-O) BLACK
Contact Material : Phosphor Bronze
Contact Area : Tin Plated Over Nickel



PA9T 0.5A 50V Female Board To Board Connector For Office Equipment


PA9T 0.5A 50V Female Board To Board Connector For Office Equipment



Item name: 1.25mm Board To Board connector
product features: the most powerful transmission capacity in the current connector, the use of a wide range of environmental protection, high temperature resistance, fire resistance, oxidation resistance, electrical conductivity, precision and strong connection
product material: UL94V-0, PA9T+30%GF, copper alloy material

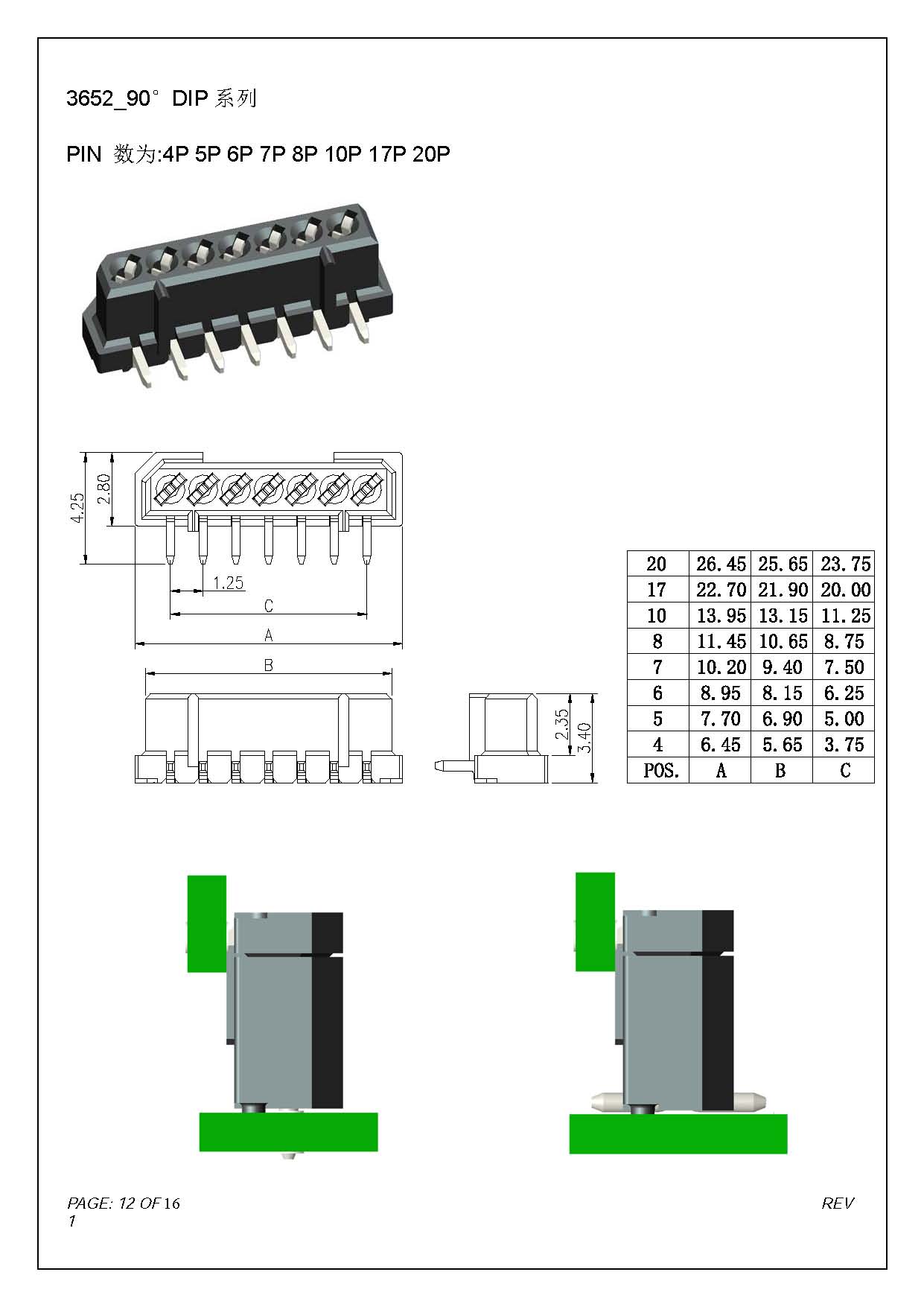

PA9T 0.5A 50V Female Board To Board Connector For Office Equipment3652-SXXX-034XXR03.pdf
