0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.

Brand Name : WCON

Model Number : 3661-XXXX-XXX SXR01

Certification : UL/CUL/SGS/ROHS

Place of Origin : Dongguan, Guangdong, China.

MOQ : 1000pcs

Price : Negotiable. It depends on the customers' requests.

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Days

Packaging Details : Reel

Metal Material : Phosphor Bronze

Insulator Material : Polyester

No of Pins : 52/60/120/140/160Pins

Pitch : 0.635mm

Insulator Height(Plug) : 6.2/14.2mm

Contact Plating : Phosphor Bronze

Type : Plug/Socket

Package Ways : Tape&Reel+Cap

Contact Now

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.





Products Issues Products Descriptions
Products Characteristics 1 The first feature is that BTB has a flexible connection and it's easy to install and remove.
2 The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness.
3 In order to meet the requirements of the SMT process, the entire product terminal welding area are strictly required to have good coplanarity.
4 Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact.
5 Contact structure with superb environmental resistance can not only be flexible, but also the use of high contact reliability of the "solid connection" can improve the socket and plug combination force.
Products Specifications Current Rating 0.5AMP
Contact Resistance 40 Milliohm Max
Insulation Resistance 1000 Milliohm Min
Withstand Voltage 250V AC/Minute
Operation Temperature -55℃ to +85℃
Contact Material Phosphor Bronze
Contact Plating Au Over Ni
Insulator Material Polyester(ul94V-0)
Standard PA9T+30%GF(UL94V-0)
Products Applications It is mainly used in electric power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.


0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.












Product Tags:

board to board connector 0.5 mm pitch



male straight connector


Buy cheap 0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze. product

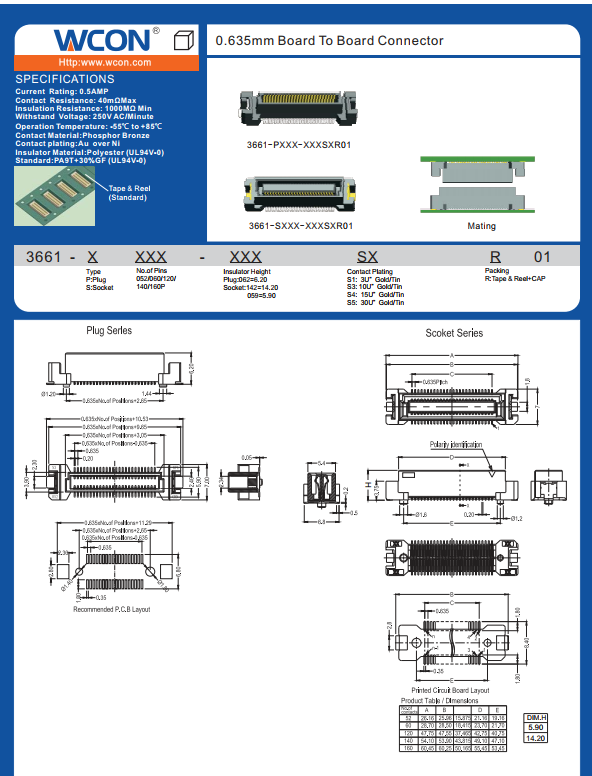

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze. Images
