2.54mm Wafer Straight 8P Wire To Board Connector multi wire connectors

Name: 254mm Wafer Straight 8P Wire To Board Connector multi wire connectors
Brand: WCON
Price: 1 USD

Brand Name : WCON

Model Number : WF2544-WR06W01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000PCS

Delivery Time : 15~25Day

Packaging Details : Tray

Rated Current : 3.0AMP

Contact Resistance : 20mΩ Max

Withstand Voltage : 1000V AC/DC

Insulation Resistance : 1000mΩ Min

Operation Temperature : ﹣45℃ to +85℃

Pin Material : Brass

Contact Now

2.54mm Wafer Straight 8P Wire To Board Connectorwhite Wmulti wire connectors

Contact Plating	Au Sn over Ni
Insulator Material	Polyester(UL94V-0)
Standard	PA66

Item name: Wafer connector

product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design

product material: (UL94V-0) PA9T, PA6T, PA46, PA66, etc.

scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

2.54mm Wafer Straight 8P Wire To Board Connector multi wire connectors

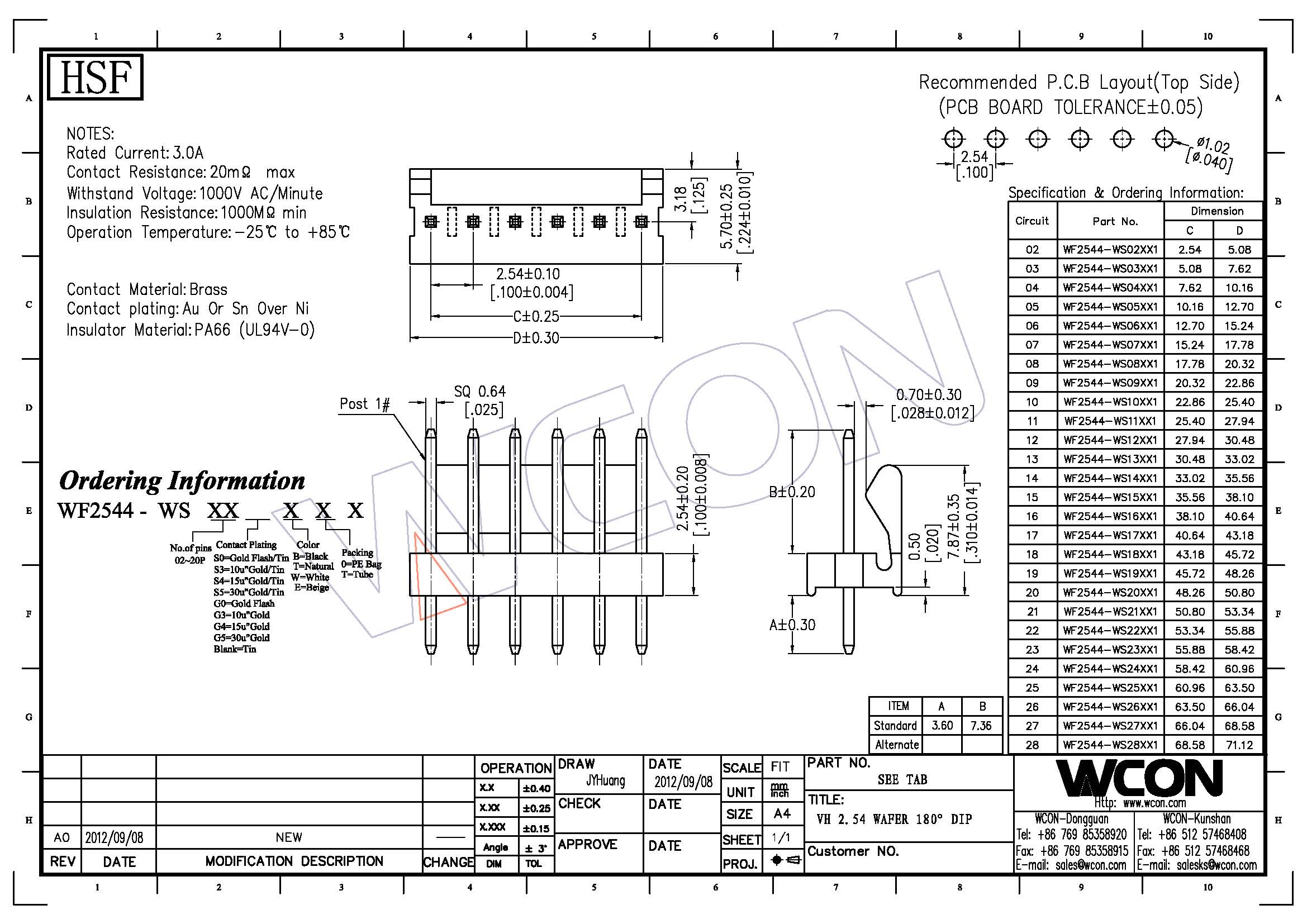

WF2544-WSXXXX1.pdf
