90°DIP Ejector Latch Header Male 16 Pin Idc Connector 2.00mm Pcb Pin Header

Product Categories

WCON ELECTRONICS ( GUANGDONG) CO., LTD

Contact Now

90°DIP Ejector Latch Header Male 16 Pin Idc Connector 2.00mm Pcb Pin Header

Name: 90DIP Ejector Latch Header Male 16 Pin Idc Connector 200mm Pcb Pin Header
Brand: WCON
Price: 1 USD

Buy cheap 90°DIP Ejector Latch Header Male 16 Pin Idc Connector 2.00mm Pcb Pin Header product

Brand Name : WCON

Model Number : 3220-XXRXXBXXX

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Tube

Gender : Male

Origin : China

Pitch : 2.00mm

Insulation Resistance : 1000mΩ Min

Operation Temperature : ﹣40℃ to +105℃

Contact Material : Brass

Contact Now

90°DIP Ejector Latch Header Male 16 Pin Idc Connector 2.00mm Pcb Pin Header

Current Rating	2.0AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	AU Sn over Ni
Insulator Material	PA9T+33％GF UL94V-0

Product Name: Ejector Header

1. features: high temperature resistance, high voltage electrical conductivity

2. material: PA9T/LCP/PBT plating surface treatment: gold or tin

3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current

90°DIP Ejector Latch Header Male 16 Pin Idc Connector 2.00mm Pcb Pin Header

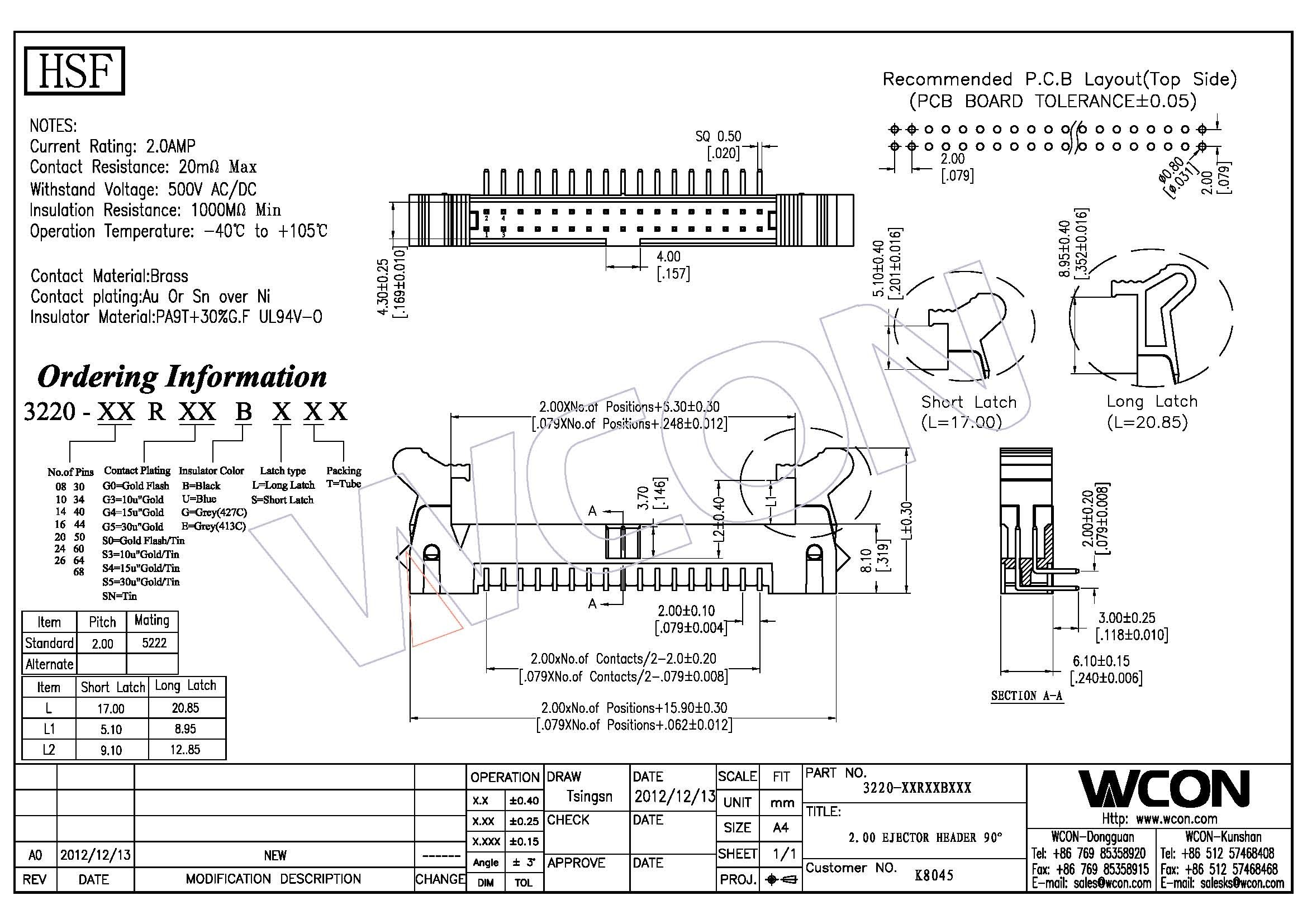

Drawing:Ejector Header 3220-XXRXXBXX1.pdf
