1.27mm board to board connector female DDK-Type 40 pin scsi connector

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

1.27mm board to board connector female DDK-Type 40 pin scsi connector

  • 1
  • 2
  • 3

Brand Name : WCON

Model Number : 6321D-XXXSDXXPXX01

Certification : UL/CUL/SGS/ROHS

Place of Origin : Dongguan, Guangdong, China.

MOQ : 1000pcs

Price : Negotiable. It depends on the customers' requests.

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25 Days

Packaging Details : Tube/Tray

Contact Plating : Gold on Contact, Tin on Tail

Contact Shape : Right Angle/Straight

Type : I/O Connector

No of Pins : 20/26/30/34/40/50/60/68Pins

Pitch : 1.27mm

Insulator Material : Polyester

Contact Material : Phosphor Bronze

Key Words : 1.27mm board to board connector female DDK-Type 40 pin scsi connector

Contact Now

1.27mm board to board connector female DDK-Type 40 pin scsi connector

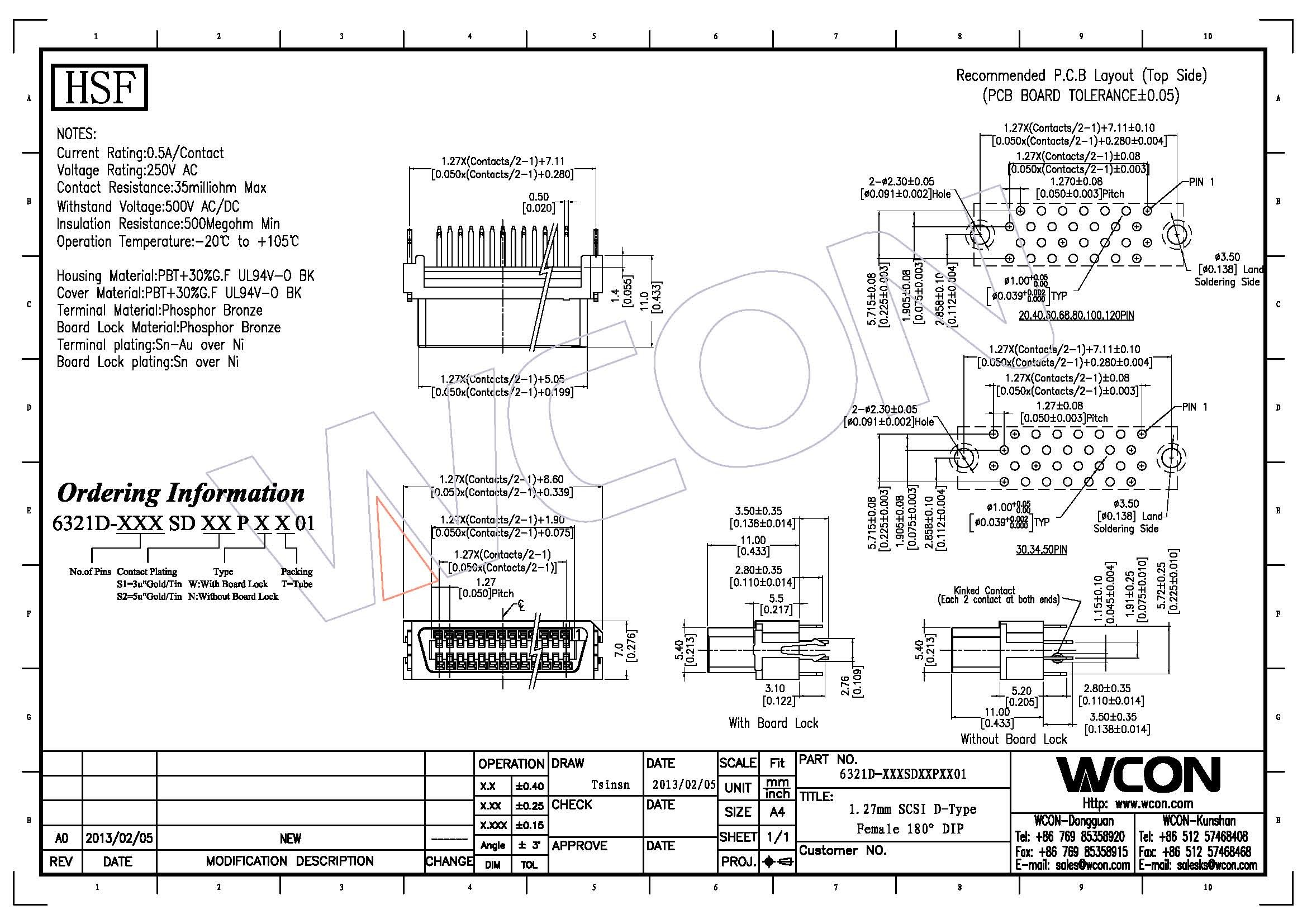

1.27mm board to board connector female DDK-Type 40 pin scsi connectorDrawing:SCSI 6321D-XXXSDXXPXX01.pdf



Products Issues Products Descriptions
Products Characteristics

SCSI is an interface that connects hosts and peripheral devices, supporting a variety of devices including disk drives, tape drives, optical drives, scanners and more. It is operated by the SCSI controller for data operations, SCSI 68P controller equivalent to a small CPU, with its own command set and cache.

Mainly in electronic products and electrical equipment to provide convenient electrical plug-in connection, widely used in electronic equipment so that the production of electronic products and maintenance efficiency can be greatly improved.
Products Specifications Current Rating 0.5AMP
Contact Resistance 35 Milliohm Max
Insulation Resistance 500 Milliohm Min
Withstand Voltage 500V AC/Minute
Operation Temperature -40℃ to + 125 ℃
Contact Material Phosphor Bronze
Contact Plating AU or SN over Ni
Insulator Material Polyester
Standard PBT Black + 30% GF
Products Applications Mainly used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection.



1.27mm board to board connector female DDK-Type 40 pin scsi connector
