2.54mm Pitch 90 Wire To Board Connector Wafer Connector Manufacturer

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

2.54mm Pitch 90 Wire To Board Connector Wafer Connector Manufacturer

Brand Name : WCON

Model Number : WF2547-1WRXXXXXX1

Certification : UL/CUL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15-25Day

Packaging Details : Reel Tray Tube

Product Name : Housing Connector

Model Numbe : 02-20P

Series : PCB Batteery

Original : China

Plastic Material : PBT UL94V-0

Application : Home Appliances / Automotive Equipments

Contact Now

product details



2.54mm Pitch 90 Wire To Board Connector Wafer Connector Manufacturertechnical parameter
Rated Current 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣25℃ to +85℃
Pin Material Brass
Contact Plating Sn over Ni
Insulator Material Polyester(UL94V-0)
Standard PA66





2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerFeature description
Item name: Wafer connector
1. product features: it makes the design and production process more convenient, more flexible, reducing production and maintenance costs, easy maintenance, easy to upgrade, improve design flexibility
2. product material: (UL94V-0) PA9T, PA6T, PA46, PA66 and so on

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerDrawing
2.54mm Pitch 90 Wire To Board Connector Wafer Connector Manufacturer

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerInstructions
Wafer connector is mainly used for board to line connection, there is a pair of line ends Housing and terminals, the plate end of the Wafer insert PCB board, line end assembled good electronic line, and the plate end of Wafer pairs inserted into, forming a plate to line connection

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerPacking list
Boxed tube

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerApplications / applications
Application: apply to computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerProduct picture

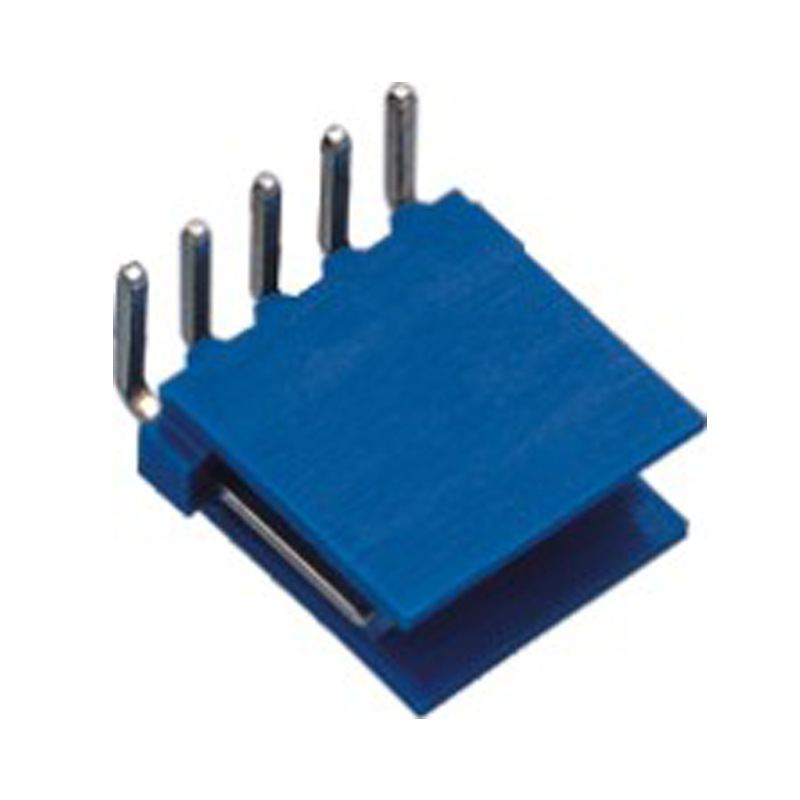

2.54mm Pitch 90 Wire To Board Connector Wafer Connector Manufacturer
2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerDrawing Download

2.54mm Pitch 90 Wire To Board Connector Wafer Connector ManufacturerWF2547-1WRXXXXXX1.pdf
