Double Row PCB connectors wire to board / printed circuit board connectors

Name: Double Row PCB connectors wire to board printed circuit board connectors
Brand: WCON
Price: 1 USD

Brand Name : WCON

Model Number : WF2547-2WS05U01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000PCS

Delivery Time : 15~25Day

Packaging Details : Tray

Insulation Resistance : 1000mΩ Min

Operation Temperature : ﹣25℃ to +85℃

Pin Material : Brass

Standard : PA66

Insulator Material : Polyester(UL94V-0)

Contact Plating : Sn over Ni

Contact Now

Straight Dual Row Wire To Board Connector 2.54mm Blue wafer

Rated Current	3.0AMP
Contact Resistance	20mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣25℃ to +85℃
Pin Material	Brass
Contact Plating	Sn over Ni
Insulator Material	Polyester(UL94V-0)
Standard	PA66

Item name: Wafer connector

product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design

product material: (UL94V-0) PA9T, PA6T, PA46, PA66, etc.

scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

Double Row PCB connectors wire to board / printed circuit board connectors

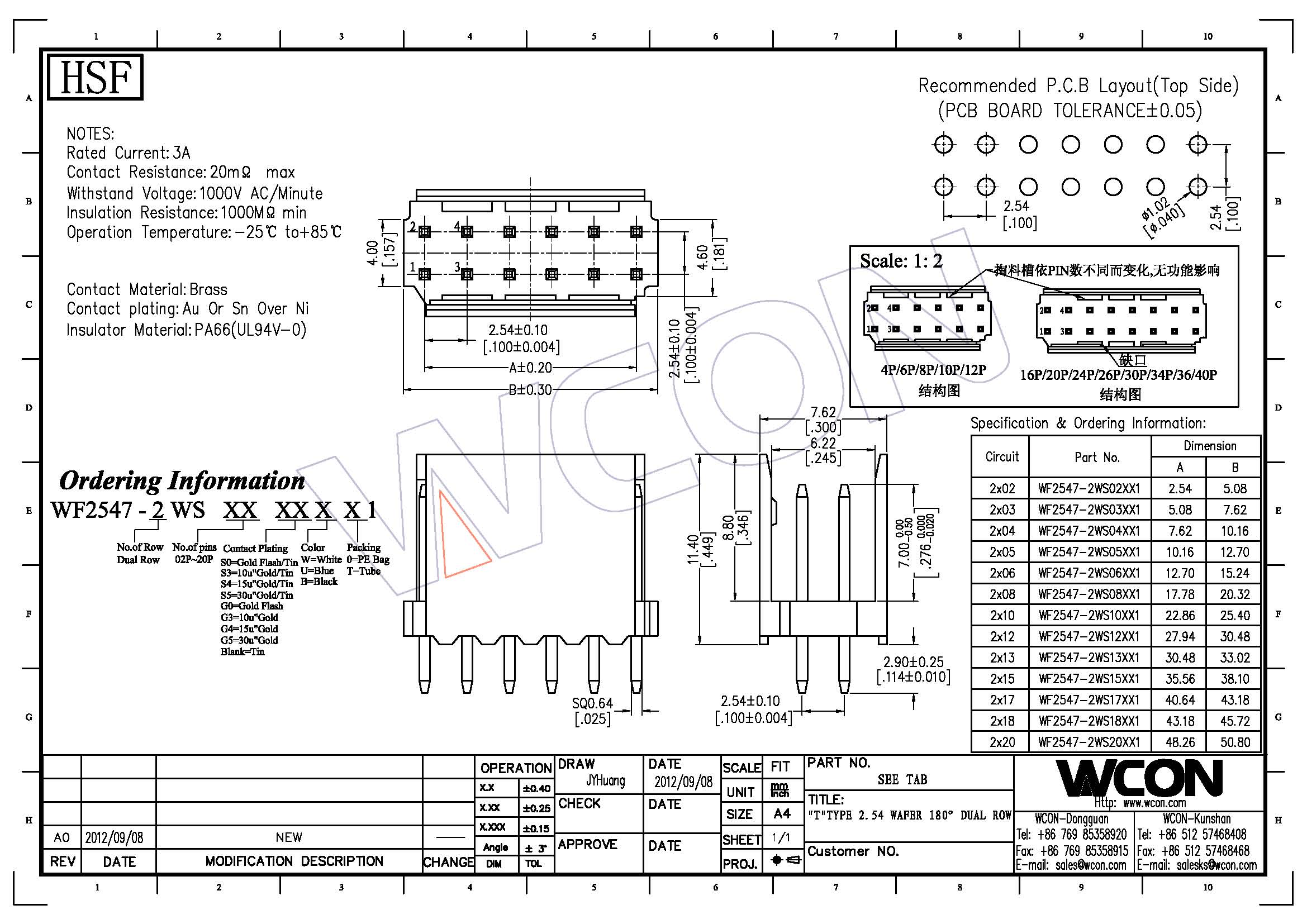

WF2547-2WSXXXX1.pdf
